Model: UVS-26
Price:
Sale price$835.00 Regular price$883.34

Contact Us

Description

Download a paper in regard to using the Analytik Jena CL-3000 UV crosslinker for disinfecting respirator masks here.

See a movie of the CL-2000 used for disinfecting respirator masks here.

International Ultraviolet Association (IUVA) fact sheet on Covid-19 here.

EL Series UV Lamp

Manufactured with a durable, extruded metal housing and scratch resistant powder paint. Select from a large range of lamps with single or multiple wavelengths and watts.

Select from a variety of wavelengths:

  • Select from lamps with six or eight watts.
  • Models available include 254nm shortwave for germicidal UV applications

Rugged design is excellent for high usage. The lamps are lightweight for easy holding or place the lamp in the stand or cabinet for hands free operation. The built-in reflector enhances UV illumination.

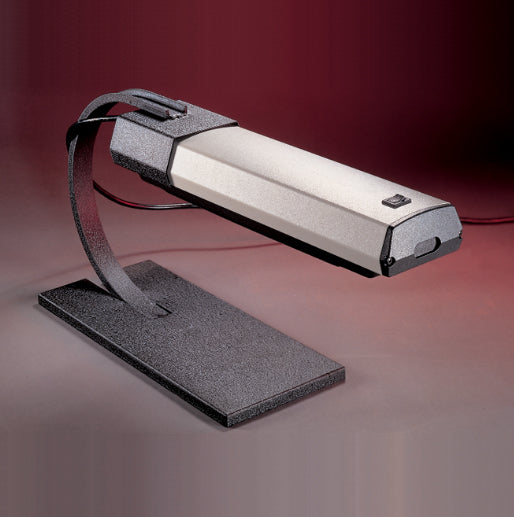

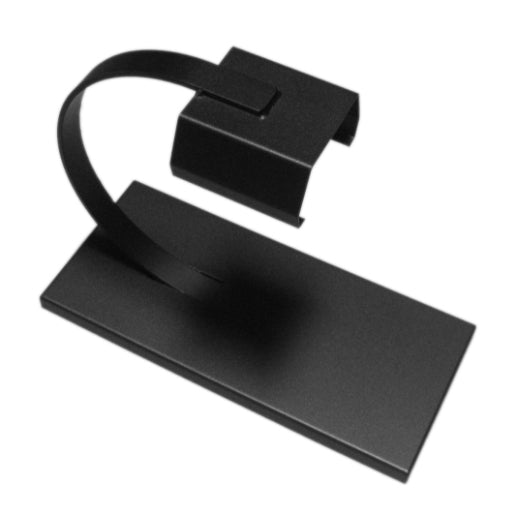

J-138 Lamp Stand (Optional)

Order the J-138 Lampstand for hands free operation. The J-138 stand offers support and hands-free use of EL Series UV lamps. The lamp easily slips in and out of the lamp as needed. Dimensions: 10.74" H x 13" L x 3"W (273 x 330 x 76mm). The  J-138 Lamp Stand is an optional item and is not included as standard with the El Series Handheld UV Lamps.

UV Protection

UV-C's effects on the human body vary depending on length of exposure, but can cause painful burns on the skin. It can also cause temporary damage to the cornea if observed directly. Aside from these threats, UV-C is a known carcinogen for human skin. We strongly suggest using protective eyewearface shields, and gloves when working with UV-C.

Optional Radiometer

Measurement of lamp irradiance is the most effective way to monitor the useful life of any UV light source. The UVX Radiometer is useful for measuring UV intensity to ensure the desired UV dosage is being accurately applied. Useful for germicidal UV-C as well as UV curing applications.

UVP UVX Radiometer by Analytik Jena

Specifications

6 or 8 watts
254nm wavelength
Metal housing with scratch resistant powder coat
8 foot cord length
Dimensions:
6 Watt EL Lamps: 12L x 3.8W x 2.5D in. (302 x 96 x 64mm)
8 Watt EL Lamps: 14.8L x 3.8W x 2.5D in. (376 x 96 x 64mm)
Lamp Stand (Optional): 10.74H x 13L x 3W in. (273 x 330 x 76mm)

Intensity specifications for EL series lamps

UVS-26 - 6 Watt - 2,225 uW/CM2 at a 3 inch distance from surface
UVS-28 - 8 Watt - 2,700 uW/CM2 at a 3 inch distance from surface

Part number Model Wavelength  Watts
95-0277-01 UVS-26 254nm
95-0249-01 UVS-28 254nm 8

Country of origin: USA
Ships from: California
Warranty: 1 year
Typically ships within 5 days upon receipt of order. The UVX Radiometer typically ships within 14 days upon receipt of an order.

Documents

User manual: EL Series Lamps user manual
Application Bulletin: Determining EPROM erasure or sterilization time
Application Bulletin: Bacterial destruction chart
Safety notice: Ultraviolet (UV) Safety Information



  • 6 or 8 watts
  • 254nm wavelength
  • Metal housing with scratch resistant powder coat
  • 8 foot cord length
  • Dimensions:
  • 6 Watt EL Lamps: 12L x 3.8W x 2.5D in. (302 x 96 x 64mm),

    8 Watt EL Lamps: 14.8L x 3.8W x 2.5D in. (376 x 96 x 64mm)

    Lamp Stand (Optional): 10.74H x 13L x 3W in. (273 x 330 x 76mm)

    Intensity specifications for EL series lamps
  • UVS-26 - 6 Watt - 2,225 uW/CM2 at a 3 inch distance from surface
  • UVS-28 - 8 Watt - 2,700 uW/CM2 at a 3 inch distance from surface
Part number Model Wavelength  Watts
95-0277-01 UVS-26 254nm
95-0249-01 UVS-28 254nm 8

Ordering information

  • Country of origin: USA
  • Ships from: California
  • Warranty: 1 year
  • Typically ships within 5 days upon receipt of order. The UVX Radiometer typically ships within 14 days upon receipt of an order.
  • Shipping Cost: $30.00 USA, $95.00 HI, AK, and PR
